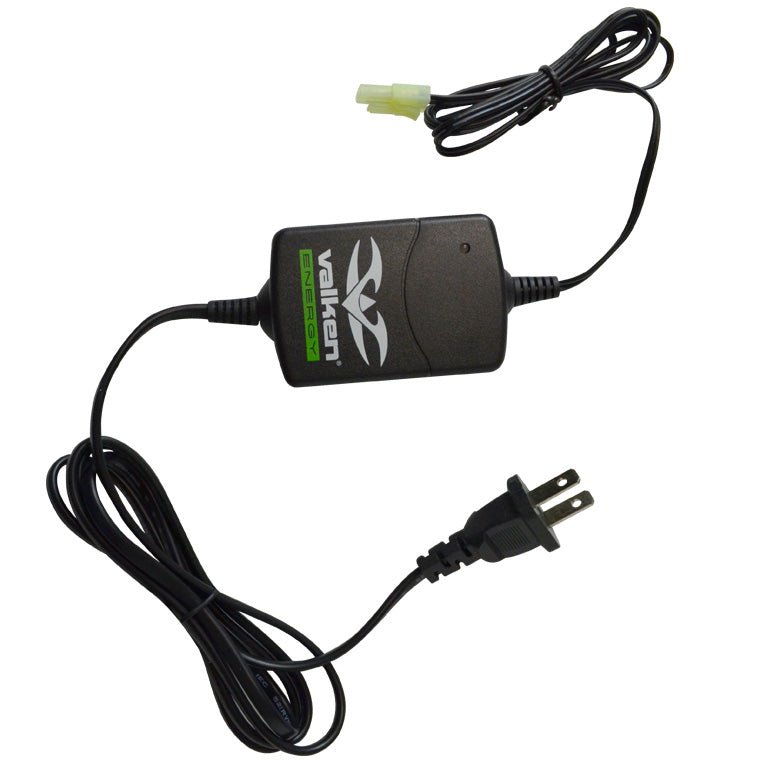

The Valken 8.4V-9.6V NiMh Airsoft Battery Charger is a smart charger built for NiMh and NiCd battery packs containing 7-8 cells. With a charge rate of 600mA and a mini Tamiya connector, it’s designed for easy, reliable use. It automatically stops charging once the battery reaches full capacity using Delta Peak Detection, preventing overcharging and switching to a trickle current to maintain the charge.

Key Features:

• Automatic Charging Stop: Delta Peak Detection stops charging when the battery is full, then switches to a 200mA trickle charge after 5 hours.
• Compatibility: Designed for NiMh/NiCd batteries with 8.4V or 9.6V (7-8 cells).
• Safety Features: Reverse polarity and short circuit protection to prevent damage from incorrect connections.
• Small Tamiya Connector: Convenient and widely used in airsoft battery packs.
• LED Status Indicator: Red light during charging, green when fully charged.

Specifications:

• Compatibility: 8.4V and 9.6V NiMh Batteries (7-8 cells)
• Connector: Small Tamiya
• Charge Rate: 600mA (200mA trickle current)
• Input Voltage: 100-240V AC
• Dimensions: 75mm x 52mm x 28mm
• Material: Durable polymer case
• Package Includes: Charger and manual

Operation Instructions:

1. Fully charge new batteries before use.
2. Plug the charger into a wall outlet and connect the battery with the correct polarity via the mini Tamiya connector.
3. Charging begins automatically; LED will turn red.
4. Once fully charged, the LED will turn green.
5. Disconnect the battery from the charger before unplugging the charger from the outlet.

Warnings:

• Do not charge Lithium batteries: This charger is only for NiMh/NiCd batteries.
• Never leave the charger unattended while in use.
• Use a safe surface: Charge batteries on a non-flammable surface to prevent fire hazards.
• Check for damage: Inspect the battery and charger before use. If any damage is visible, do not proceed with charging.
• Safety Protections: Ensure the charger and battery remain secure during charging to prevent accidents.

Safety Considerations:

• Do not expose batteries to high heat (above 160°F).
• Avoid unsafe charging surfaces such as car seats, carpet, or beds.
• Only use the charger for NiMh/NiCd batteries. Never charge lead-acid, LiPo, Li-ion, or damaged batteries.
• Storage & Handling: Store batteries securely and out of reach of children, avoiding liquids and extreme heat.

This smart charger offers efficient and safe charging for NiMh and NiCd batteries used in airsoft, providing reliable performance with built-in safety features.
