Integrated Puncture Valve - Complete Assembly - Tippmann Part #TA20103 - TippmannParts

Integrated Puncture Valve - Complete Assembly - Tippmann Part #TA20103

Tippmann SKU: R09220

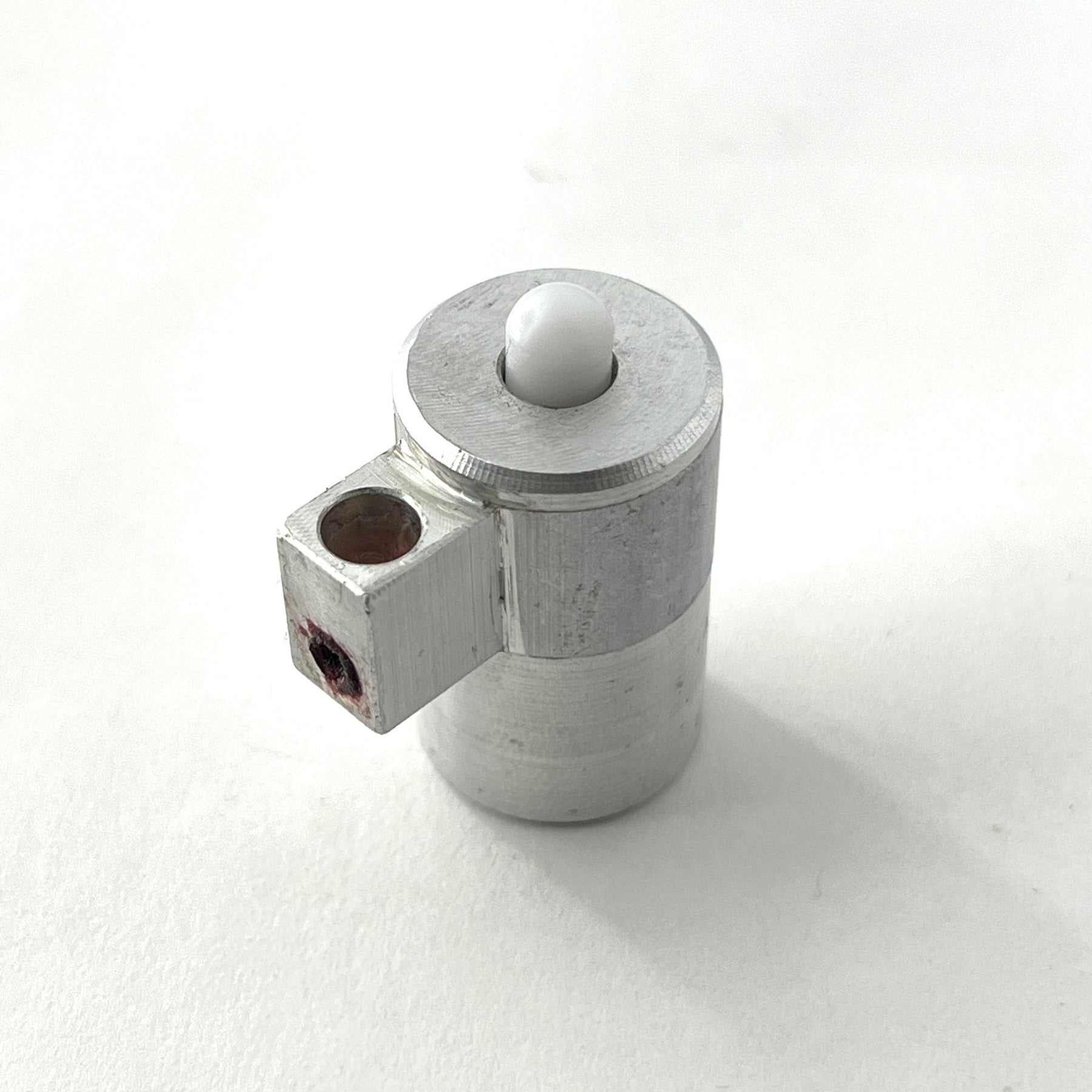

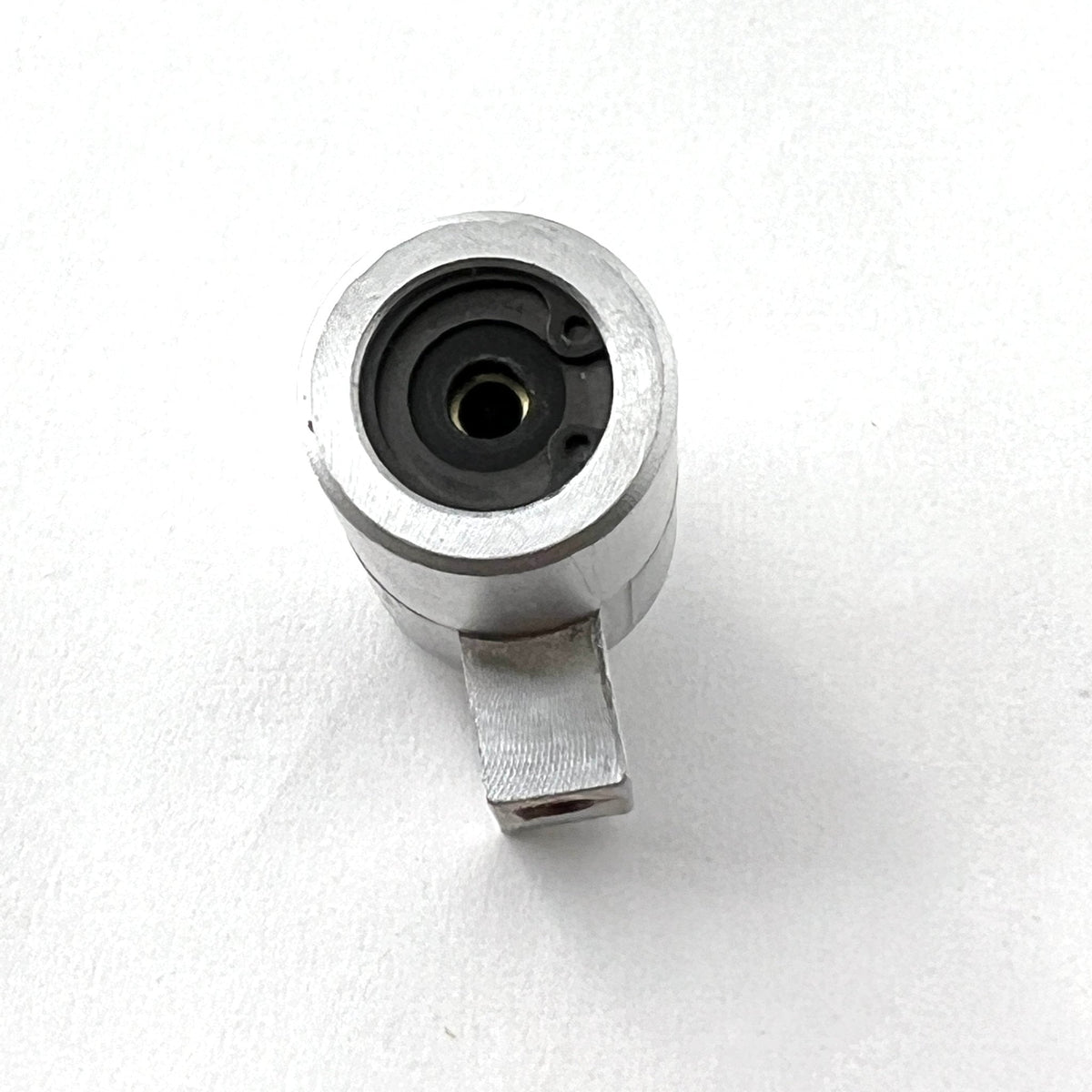

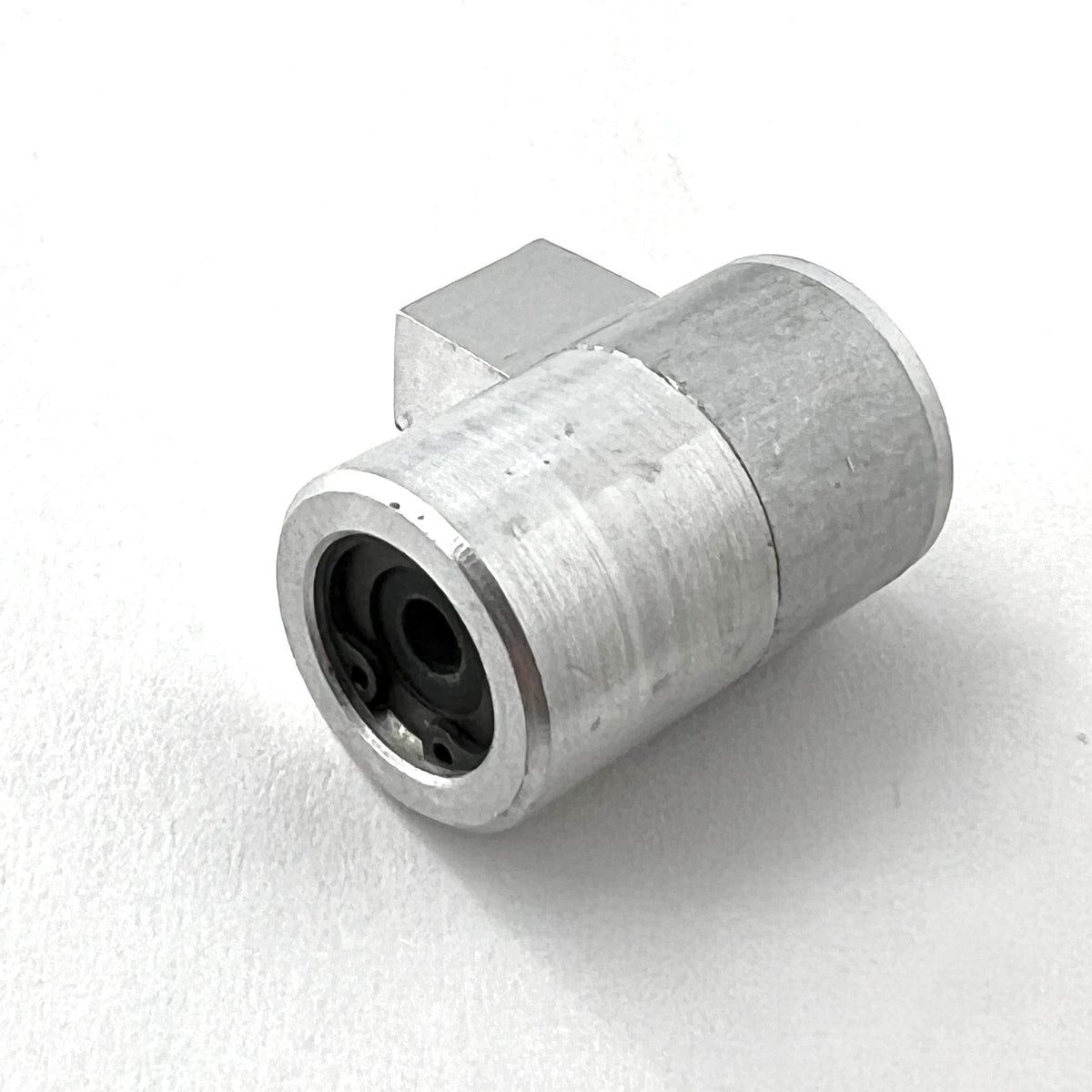

Integrated Puncture Valve - Complete Assembly - Tippmann Part #TA20103

Tippmann SKU: R09220
Stock Status: Currently Out of Stock - You may place an order but it will not ship immediately.
Shipping calculated at checkout.
 More payment options
Add to wishlist
Regular price $25.00 Sale price $22.00 Save 12%
/

The puncture valve changed designs shortly into the TPX/TiPX product life cycle.

The original designs had a puncture valve and then an air fitting mounted to it.

The newer design is called the 'Integrated Puncture Valve' as it combined the TA20103 puncture valve and the TA20108 Air Fitting into a single 'integrated' piece. This new piece still uses the same TA20103 part number as the original puncture valve. You know, for clarity.  :)

For reference:

  • OLD
    • TA20033 Puncture Valve Body Only (Old Style) > No longer used. Its function is now part of the integrated puncture valve.
    • TA20108 Air Fitting > No longer used.  Its function is now part of the integrated puncture valve.
  • New
    • TA20103 Complete Assembly of the Integrated Puncture Valve > Newer, current one piece valve. Includes . . .
      • TA07089 Snap Ring
      • TA20069 Washer
      • TA20034 Puncture Seal
      • TA20032 Puncture Piston Assembly
        • SL2-25 Puncture Piston Oring
        • TA20015 Puncture Piston
      • TA20048 Spring
      • TA20031 Puncture Pin
      • TA20049 Oring
      • TA20039 Puncture Pin Cap
      • TA20094 Puncture Valve Body
    • 11897 Alternative sku for TA20103.  Exact same item.
    • TA20094 Body Only for the Integrated Puncture Valve
    • 77002 Alternative sku for TA20094.  Exact same item.

You can use the TA20103 Integrated Puncture valve assembly in place of the old puncture valve and air fitting set up.



Integrated Puncture Valve Assembly on the Tippmann TCR Diagram 2014-06-25
Puncture Valve Complete on the Tippmann TiPX Diagram and Parts List 2023
Puncture Valve Complete on the Tippmann TPX Diagram 2008-12-02
