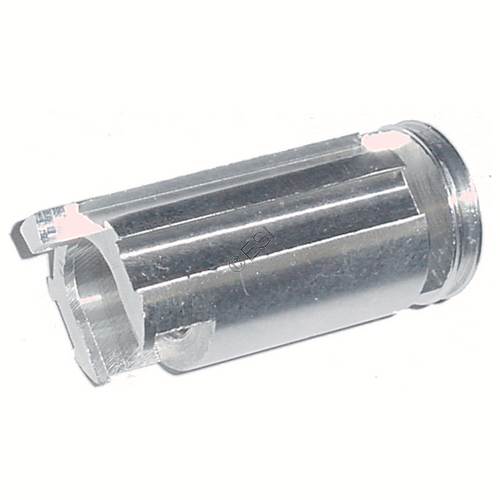

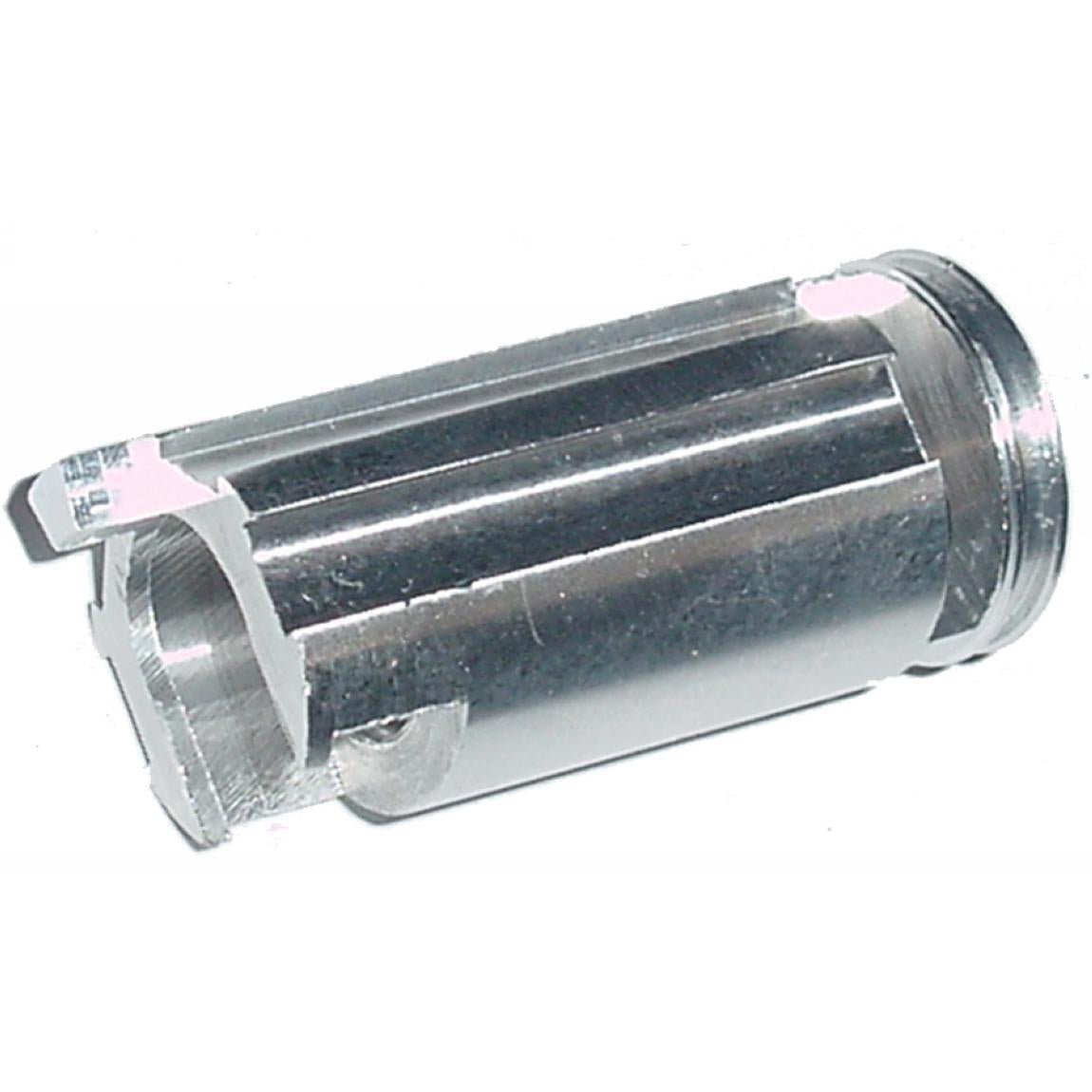

Valve Body-No Internals (Short) - Tippmann Part #02-25

Tippmann SKU: R08069
Valve Body-No Internals (Short) - Tippmann Part
Valve Body-No Internals (Short) - Tippmann Part

Valve Body-No Internals (Short) - Tippmann Part #02-25

Tippmann SKU: R08069
  • In stock, ready to ship
  • Inventory on the way
We're sorry to inform you but this part is sold out and is now discontinued by the manufacturer. We have no good substitutions at this time unless noted below.

02-25 Valve Body for A5's and X7 's.

This is the original valve body used in the original valve assembly # 02-V on A5's and X7's.  It has since been upgraded to a slightly longer 02-25 v2.  The v2 measures 2" long and the 02-25 was 1 & 15/16" long.

Compatibility and Tech Notes

  • For an A5
    • with a 02-V valve assembly with the 02-25 valve body: (you can tell because the 02-25 valve body measures 1 & 15/16")
      • You should upgrade to the
        • new longer valve body and the new
        • tombstone oring to go with it.
      • Or, just replace the whole assembly with the newer 02-V v2.
    • with a 02-V v2 valve assembly and the 02-25 v2 valve body: (you can tell because the 02-25 v2 valve body measures 2")
      • If you just need a valve body then replace it with the same 02-25 v2.  Or you can replace the whole assembly with 02-V v2
  • For an X7
    • with 02-V valve assembly and 02-25 valve body: (you can tell because the 02-25 valve body measures 1 & 15/16")
      • You should upgrade your
        • valve body to 02-25 v2
        • tombstone oring to the new larger TA01058
        • valve stem to the longer TA10052
        • This will effectively upgrade your valve to the new TA10060 assembly.  Or you can just replace the whole asembly complete with TA10060.
    • with 02-V v2 valve assembly and 02-25 v2 valve body: (you can tell because the 02-25 v2 valve body measures 2")
      • If you just need a valve body then replace it with the same 02-25 v2.  Or you can replace the whole assembly with TA10060 which would also guarantee that you get the new longer valve stem TA10052.
    • with TA10060 valve assembly with 02-25 v2 valve body
      • If you just need a valve body then replace it with the same 02-25 v2.  Or you can replace the whole assembly with TA10060.

Note: If you order this 02-25, we will send you a new, longer 02-25 v2.  The shorter 02-25 is no longer available.

Valve Body-No Internals (Short) on the Tippmann A-5 Basic Diagram v2 2009-08-06
Valve Body-No Internals (Short) on the Tippmann A-5 RT Body Diagram v2 2009-09-04
Valve Body-No Internals (Short) on the Tippmann A-5 Basic 2011 Diagram
Valve Body-No Internals (Short) on the Tippmann X7 Photographic Large Diagram
Valve Body-No Internals (Short) on the Tippmann X7 E-Grip Diagram 2007-11-26
Valve Body-No Internals (Short) on the Tippmann X7 RT Diagram
